Ask a legacy IDP vendor to support a new form — a broker’s bespoke exposure template, a new ACORD variant, a carrier-specific loss run — and the clock starts: collect samples, label them, train or fine-tune a model, validate, deploy. Weeks, and a data-science team, per document type. For a specialty carrier facing dozens of document types across lines of business, that’s the real bottleneck — not the extraction itself, but the cost of teaching the system each new thing.

InsightXtract removes that bottleneck by making an extraction agent a configuration, not a codebase. A document class — its fields, tables, reference data, rules, and model settings — is authored in a six-tab builder and stored as YAML. The same agentic engine runs every class; what changes per document type is the config, and the people who own the domain can write it.

The six-tab builder

One workspace to go from a blank class to a published, tested agent.

1
Upload & Discover
Drop in a sample document. AI reads it and proposes the fields and tables it contains — you start from a draft schema, not a blank page.
2
Schema
Refine the fields and tables: names, types, required flags, and a per-field extraction hint (the plain-language prompt the agent uses for that field).
3
Glossaries
Bind the glossaries and lookups that standardize this class’s values — state codes, coverage types — with priority ordering.
4
Rules
Add post-processing and validation visually: standardize, format, derive, validate, and cross-field invariants — no code.
5
Editor
See and hand-edit the underlying YAML directly, with the AI/model configuration alongside. The visual tabs and the YAML are two views of one spec.
6
Test
Run the class against a document and inspect the result — fields, tables, and the standardization report — before you publish.

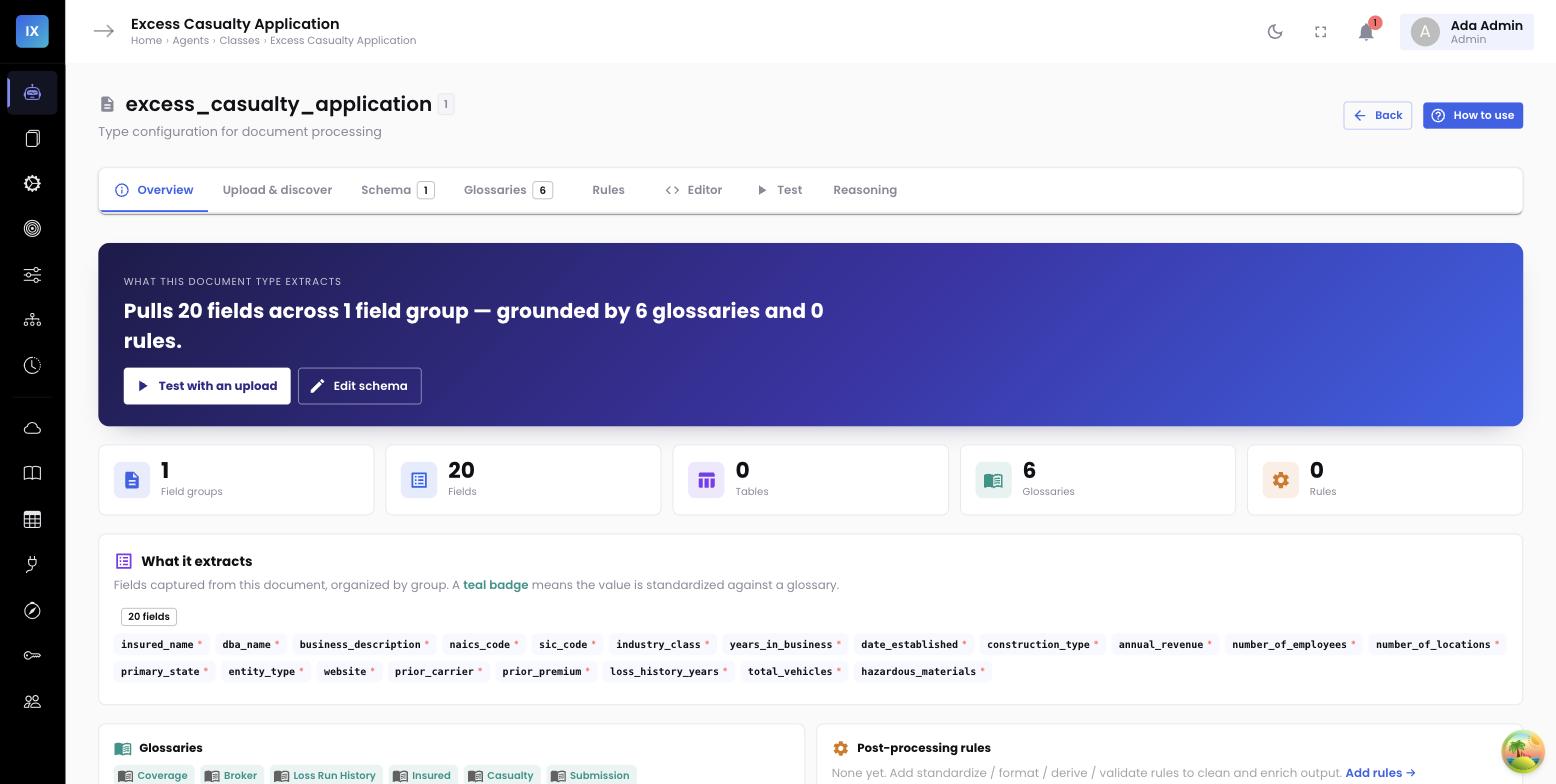

InsightXtract document-class builder — the visual schema designer where fields, tables, glossaries, and rules are configured and serialized to YAML, no code required
The builder: fields, tables, glossaries, and rules configured visually — and serialized to the YAML the agent runs.

AI-assisted discovery: start from a draft, not a blank page

The slowest part of defining a new document type is enumerating everything worth extracting. The builder’s discover step does the first pass for you: it reads a sample and returns a proposed set of fields and tables — with types and suggested reference data — that you accept, rename, or drop. You’re editing an AI’s draft of the schema, which is far faster than authoring one from scratch and easy for a domain expert to get right.

Everything is YAML underneath

The visual tabs write a single declarative spec. That’s what makes the builder more than a form: the config is portable, versionable, and reviewable, and power users can drop into the Editor tab at any time.

# what the builder produces — a document class spec
class_name: excess_casualty_application
fields:
  - { name: insured_name, type: string, required: true }
  - { name: insured_state, type: string, glossary: us_state_codes }
  - { name: annual_revenue, type: currency, prompt: "Total annual revenue for the most recent year" }
tables:
  - { name: exposure_schedule, columns: [state, payroll, class_code] }
post_processing: { standardize: […], validate: […] }
ai_config: { provider: claude, temperature: 0.1 }

Because it’s config, behavior changes without engineering

The deeper point isn’t just defining a class without code — it’s tuning one. The extraction rules, the reference data, the validation invariants, the model choice: all of it lives in the spec, so adjusting how the agent behaves on a document type is a config edit in the UI, versioned and published, not a change to the engine.

flowchart LR U[upload a
sample] --> AI[AI discovers
fields & tables] AI --> S[refine schema
+ per-field hints] S --> G[bind glossaries
& lookups] G --> R[add rules
& invariants] R --> T[test on a doc] T --> P[publish] P -.versioned YAML.-> ENG[same agentic
engine runs it]

The settings, by name

“Config-driven” is easy to claim, so here is the inventory. Every one of these is set on a document class in the console and versioned with it — no release, no code.

DecidesSettings
How a document is readextraction_mode (vision · OCR text · plain text), layout_text, enable_vision, image_dpi, max_pages
Which model does whatperception_model, classifier_model, extraction_model, escalation_model — a small domain model for the bounded work, a frontier model for the rest
What is verifiedlabel_check (off · warn · strict), min_confidence
What is computed14 post-processing rule kinds — derived_fields, derived_tables, project_table, infer (13 named inferences), merge_rows, dedupe_rows, standardize, format, validate and more

Full reference in the extraction configuration docs, including which defaults we ship and why we chose them.

One engine, many configs

Every document class — ACORD, loss run, broker email, exposure workbook — runs on the same perceive → plan → extract → validate → reflect engine. Adding a class doesn’t add a model to train or a pipeline to maintain; it adds a spec. That’s how a carrier goes from a handful of supported documents to dozens, across lines of business, without a proportional engineering cost.

Why it matters

  • Days, not weeks, per document type. No labeling, no training run — upload, refine, test, publish.
  • Domain experts own the config. The people who know what a field means — underwriters, ops leads — author it, instead of translating requirements to a data-science backlog.
  • Change management built in. Specs are versioned and published, so a change is reviewable and reversible — not a silent model update.
  • No proliferation of pipelines. One engine runs every class, so scaling coverage doesn’t multiply the systems you operate.
